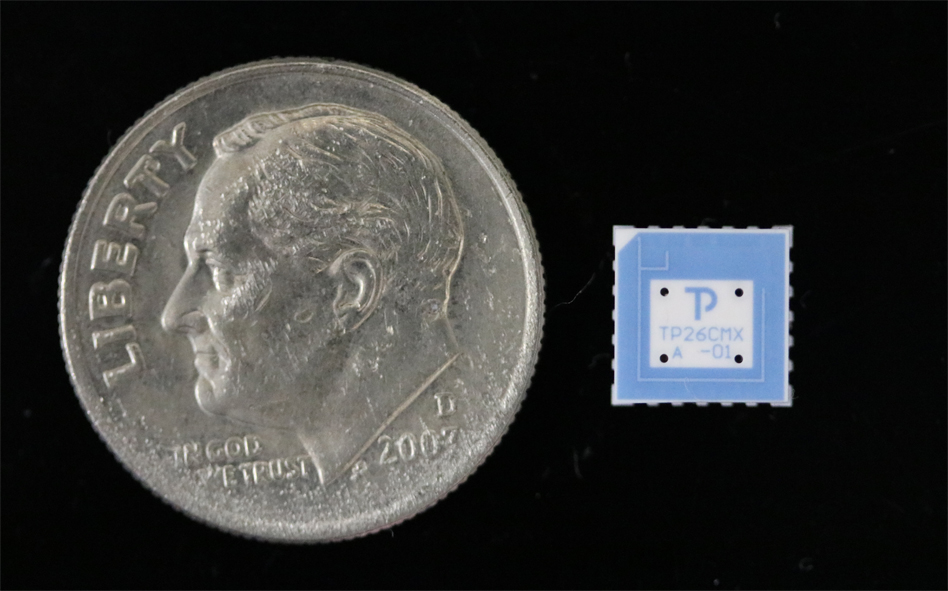

TP26CMX-01
Feature
- Adopting multilayer ceramic technology(LTCC) to realize ultra-compact antenna integration(smallest size)
- Bluetooth 5 Compatible
- Radio Regulation of Japan(TELEC),North America(FCC/IC),Europe(RED) are already acquired
- Please contact us by e-mail, if you need further information.
(E-mail Address is here)
Specification
| Item | Specification | Item | Specification | |
| Size | 6.5x6.5mm | Aplication | FA,M2M,HEMS | |
| Supply Voltage | 1.8～3.6V | Active mode Current Consumption |
5.9mA | |
| MCU | TI-CC2640 | Active mode(0dB) Current Consumption |
6.1mA | |
| Frequency Band | 2.4GHz | Active Mode(+5dBm) Current Consumption |
9.1mA | |
| Interface | UART,SPI,I2C | Stand-by Mode Current Consumption |
1uA | |
| Antenna | Internal/EXternal | Current Consumption in Shutdown |
100nA | |
| Transmission Speed | 2Mbps | Other | Confirm to RoHS Original high Speed Mode is available(2Mbps~5Mbps) Bluetooth SIG(End Product) |
Catalog Download
This catalog is as Oct,2018. Specification, Appearance etc, may change without notice. Please contact us by e-mail if you need latest information.(E-mail Address is here)
