TPWP-EVA(Wireless Charging Module Evaluation Kit)
- Since the battery contacts are not exposed, this is suitable for dustproof and waterproof products.
- Battery protection, Low battery Voltage Detection function, Power supply current setting etc...
- 2 types of charging current: 20mA and 70mA are available.
- Because of small size, it can be mounted in wearable products and healthcare products.
- If you have any question , please contact us by email (Email Address is here)
- Please inquire by this form if you want to further information about recommended battery
Evaluation Kit (TPWP-EVA) sell by Chip One Stop.
Chip One Stop Official Site.
TPWP-EVA Feature

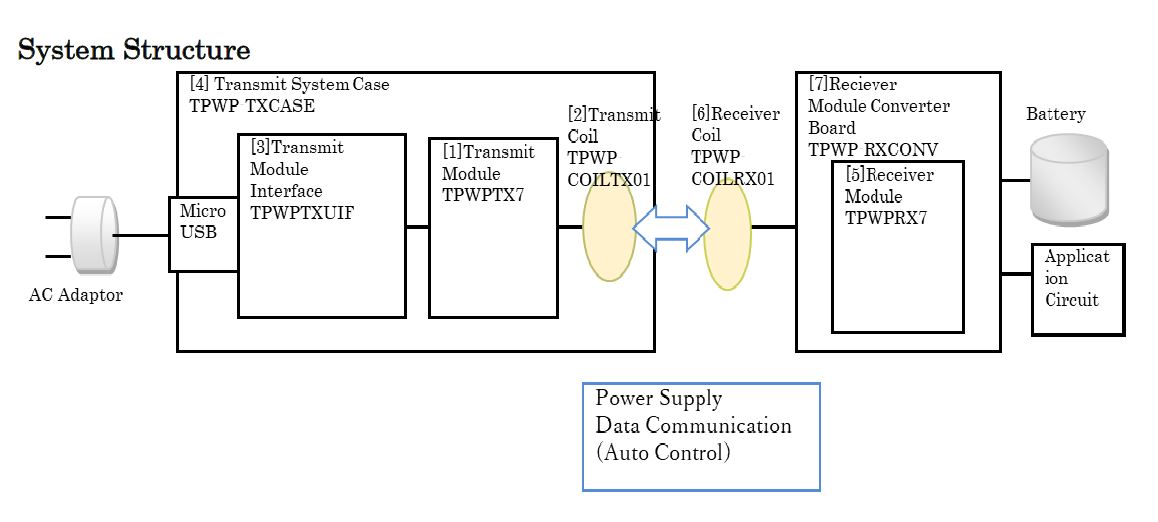

- TPWP-EVA include all contents to evaluate Receiving module in system configuration same as following this chart.
- AC adapter, USB micro cable, rechargeable battery are not included.You need prepare before use.
- Please inquire at this form if you want to get further information about recommended battery.
- TPWP-EVA includes this case. You can't get the case if you buy only module.

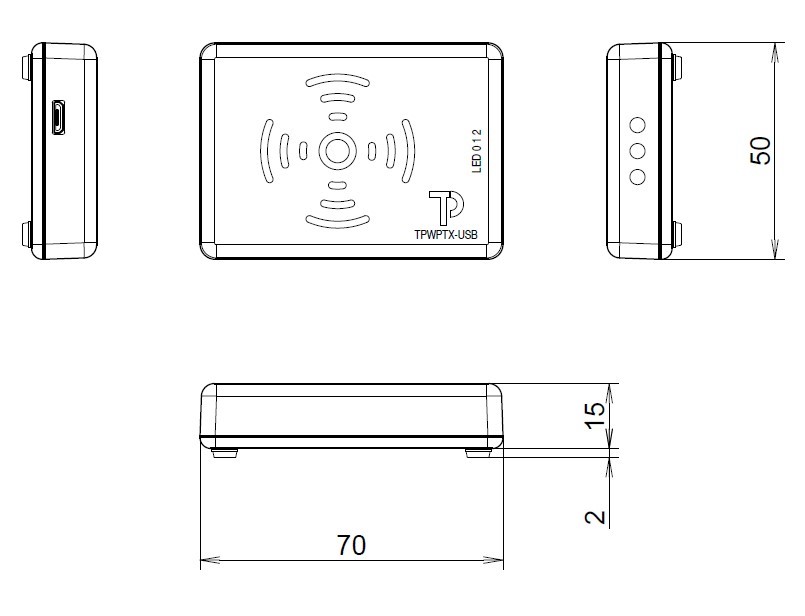

The case size is 70×50×17(mm). Appearance is following chart
Using this kit , You can
- Evaluate Receiving Module(TPWPRX2/7)
- Write charging parameter to Transmission Module(TPWPTX2/7) by windows application.
AC Adapter , USB Micro Cable, Rechargeable battery are not included .Please inquire by this form, if you want to have a further information about recommended battery
TPWP-EVA Contents
| TPWP-EVA7(70mA Module) | TPWP-EVA2(20mA Module) | |
| Transmission Module | TPWPTX7 | TPWPTX2 |
| Transmission Coil | TPWP-COILTX01 | TPWP-COILTX01 |
| Transmission Module Interface | TPWPTXUIF | TPWPTXUIF |
| Case | TPWP-TXCASE | TPWP-TXCASE |
| Receiving Module | TPWPRX7 | TPWPRX2 |
| Receiving Coil | TPWP-COILRX01(Φ15.0, t1.1) | TPWP-COILRX02(Φ10.5, t1.1) |
| Receiving Module Conversion Board | TPWP-RXCONV | TPWP-RXCONV |
| Parameter Writing Tool | TPWP-TOOL | TPWP-TOOL |
※Case Size:50x70x17(mm)
Images
TPWP-EVA include following contents.
Transmissioin Module
Transmission Coil
Transmission Interface
Case
Receiving Module
Receiving Coil
Receiving Module Conversion Board
Catalog Download
This catalog is as Oct,2018. Specification, Appearance etc, may change without notice. Please contact us by e-mail if you need latest information.(E-mail Address is here)
